Name: 35S AC Rolling Door Motor Tubular Motor For Garage Door
Brand: Shenzhen songrui electric door & window systems Co., Ltd
SKU: YX35S-13/12
Availability: InStock

35S AC Rolling Door Motor Tubular Motor For Garage Door

50 set

MOQ

Bisa dinegosiasikan

harga

fitur Galeri Deskripsi Produk Quote request suatu

fitur

Spesifikasi

Nama Produk: Motor berbentuk tabung

Tipe: YX35S-13/12

Sumber Daya listrik: AC 220V/50Hz; AC 220V / 50Hz; AC 120V/60Hz AC 120V / 60Hz

Torsi Terukur (Nm): 13

Nilai kecepatan (rpm): 12

Daya Terukur (W): 150W

Menyoroti:

35S AC Rolling Door Motor

Gerbang Garasi Gerbang Rolling Motor

Motor pintu gulung tabung

Informasi dasar

Tempat asal: Cina

Nama merek: SONGRUI

Sertifikasi: CE

Nomor model: YX35S-13/12

Syarat-syarat pembayaran & pengiriman

Waktu pengiriman: 5-8 HARI KERJA

Syarat-syarat pembayaran: T / T

Menyediakan kemampuan: 10000 Set / set per Bulan

Galeri

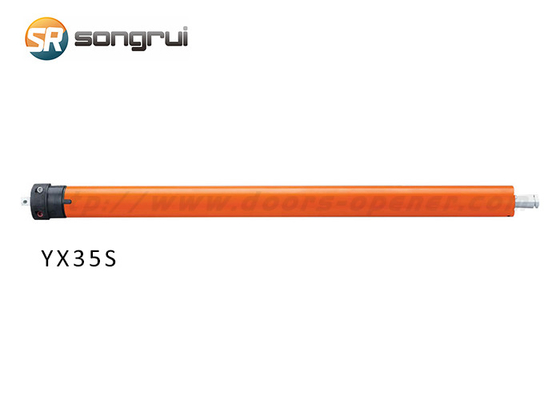

35S AC Rolling Door Motor Tubular Motor For Garage Door

Deskripsi Produk

35S AC Rolling Door Motor Tubular Motor For Garage Door

Detailed product description:

1. Standard Type-Mechanical Limit.

2. Motors are the driving force behind many roller shutters and windows, awnings, garage doors, and projection screens.

3. The product emits minial noise during operation, are easy to conceal, compact in size and whisk to install.

Main technical parameters:

YS35S

10N.m/20 Kg

AC230V 50Hz

Type	YX35S-3/28	YX35S-6/17	YX35S-6/28	YX35S-10/17	YX35S-13/12
Rated Torque (N.m)	3	6	6	10	13
Rated Speed (rpm)	28	17	28	17	12
Rated Power (W)	120	120	140	140	150
Rated Current (A)	0.52	0.52	0.60	0.60	0.65
Running Time (min)	4	4	4	4	4
Protection Class (IP)	IP44	IP44	IP44	IP44	IP44
Max. Turns (turn)	39	39	39	39	39
L1/L2(mm)	522/450	522/450	522/450	522/450	522/450

YS35S

10N.m/20 Kg

AC120V 60Hz

Type	YX35S-3/33	YX35S-6/20	YX35S-6/33	YX35S-10/20	YX35S-13/14
Rated Torque (N.m)	3	6	6	10	13
Rated Speed (rpm)	33	20	33	20	14
Rated Power (W)	102	102	105	105	110
Rated Current (A)	0.86	0.86	0.88	0.88	0.92
Running Time (min)	4	4	4	4	4
Protection Class (IP)	IP44	IP44	IP44	IP44	IP44
Max. Turns (turn)	39	39	39	39	39
L1/L2(mm)	522/450	522/450	522/450	522/450	522/450

Our service:

Welcome OEM&ODM orders

1. Logo printing on products;
2. Customized color box or carton;
3. Any your ideas on products we can help you to design and put it into production. 35S AC Rolling Door Motor Tubular Motor For Garage Door 0
